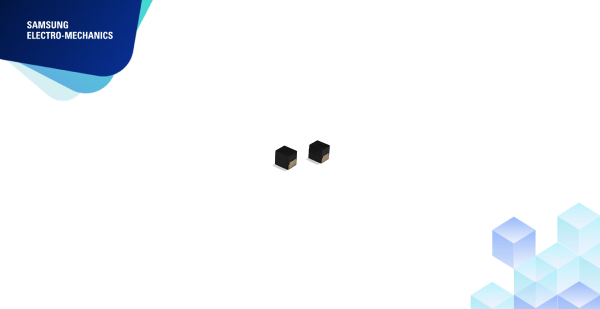

We have developed the MFC (Molded Frame Capacitor) type CL55C543JI6MPN#, which implements 54 nF at rated voltage 1000V in a 2220 inch (5.70 × 5.50mm) size, C0G (-55 to 125°C). Samples and technical support are available upon request.
As power-electronics components/systems in vehicles—such as OBCs, inverters, DC-DC converters, wireless power transfer (WPT), battery management systems (BMS), compressors, and pumps—become more integrated, higher reliability is increasingly required.
Our high-voltage MLCCs ensure stable performance in critical circuits such as power conversion, inverters, and battery-management systems, serving as core components that enhance EV safety and efficiency.
Application Guide > Automotive > (C)LLC DC-DC Converter

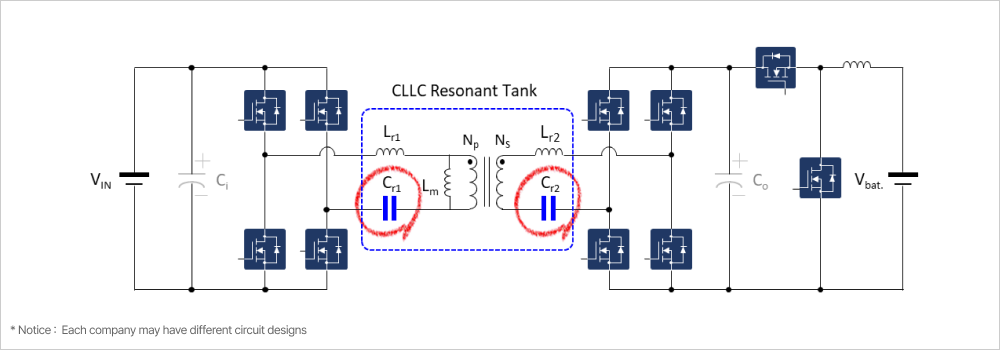

Resonant DC-DC converters (C)LLC are being increasingly applied to high-voltage battery charging circuits to address demands including EMI noise reduction, support for high voltages, and efficiency. Resonant MLCCs should be designed with low ESR to minimize energy loss, maintain a stable performance under high-voltage operating conditions and ensure durability for long-term usage.
The 2220-inch Molded Frame C0G 1000V product provides a stable resonant frequency at high voltage with minimal loss and high reliability. It is a suitable solution for high-voltage battery charging circuits.
MLCC Trend : Resonant Stability, High-Efficiency
✓ Low-ESR
✓ High-Voltage
✓ High Reliability
→ Recommendation : MFC C0G PN Series
[ Product Specifications ]
Size (inch/mm) |
Rated Voltage [Vdc] |
TCC | Capacitance | Part Number | Data Sheet | Sample |
---|---|---|---|---|---|---|
2220/5750 | 1000 | C0G | 54nF | CL55C543JI6MPN# | ↓ | Available |
Please click here for further inquiries, including sample requests.
