Low ESL MLCC Solutions for High-Performance ADAS SoCs

  • Automotive
  • 2026.05.20

The Advancement of ADAS Technology and Improvement of SoC Performance

ADAS(Advanced Driver Assistance System) technology, which aims to improve drivers' safety and convenience, continues to advance. The performance of ADAS SoCs (System on Chip) is also steadily advancing to collect and analyze more information from various sensors such as cameras, LiDAR, and radar.

This increase in performance drives a higher power consumption. Thus, the demand for MLCCs of not only high capacitance but also Low-ESL features continue to grow, as they are required for a stable SoC operation in high-power and high-frequency environments.

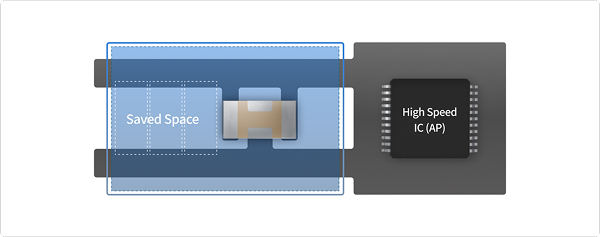

Low-ESL (LICC/3T) MLCCs provide excellent high-frequency noise suppression and stable power delivery with fewer components than standard MLCCs. They are also an effective solution for circuits with limited mounting space.



Low ESL MLCC Product Line-up

Features Part Number Status Capacitance Rated
Vdc		 TCC Size Code
(inch/mm)		 L Size W Size T Size
Reverse
(Low ESL)		 CLL5Z225MS21PN Mass Production 2.2uF 2.5Vdc X7T 0204/0510 0.65+0.05/
-0.10mm		 1.15+0.05/
-0.10mm		 0.20±0.02mm
Reverse
(Low ESL)		 CLL5Z105MR41PN Mass Production 1uF 4Vdc X7T 0204/0510 0.58±0.10mm 1.10±0.10mm 0.43±0.10mm
Reverse
(Low ESL)		 CLL5Z105MS21PN Mass Production 1uF 2.5Vdc X7T 0204/0510 0.65+0.05/
-0.10mm		 1.15+0.05/
-0.10mm		 0.20±0.02mm
3T
(Low ESL)		 CL05Z105MR41PT Mass Production 1uF 4Vdc X7T 0402/1005 1.00±0.20mm 0.50±0.20mm 0.40±0.10mm
3T
(Low ESL)		 CL10Z105MO66PT Mass Production 1uF 16Vdc X7T 0603/1608 1.60±0.10mm 0.80±0.10mm 0.60±0.10mm
3T
(Low ESL)		 CL05Z435MS41PT Sample Available 4.3uF 2.5Vdc X7T 0402/1005 1.00±0.20mm 0.50±0.20mm 0.40±0.10mm
3T
(Low ESL)		 CL10Z106MRF6PT Sample Available 10uF 4Vdc X7T 0603/1608 1.60±0.20mm 0.80±0.20mm 1.25±0.10mm

Please click here for sample requests or any other inquiries.
