Proposal for Compact, High-Capacitance, Low-ESL MLCCs for IVI (In-Vehicle Infotainment)

  • Automotive
  • 2025.08.29
Abstract
As ADAS (Advanced Driver Assistance Systems) and autonomous driving technologies rapidly evolve to ensure the drivers’ safety and convenience, In-Vehicle Infotainment (IVI) systems follow their lead.
The latest IVI trends involve integrating various functions and systems for the driver’s convenience. This includes expanding and integrating displays for entertainment, communication linkage with various objects (V2X: Vehicle-to-Everything) and not just driving-related information such as vehicle status details and driving directions.
As high resolution displays and communication modules are increasingly adopted in vehicles, processors require fast computation speeds, high graphics performance and reliability to ensure the stability of system operations.
Samsung Electro-Mechanics continues to supply and expand the compact, high-capacitance, Low-ESL MLCC line-up designed for this application.

Latest Technology Trends

IVI (In-Vehicle Infotainment) technology is evolving. ① It amplifies from a simple display of driving and vehicle status information to one that provides drivers and passengers with various convenience and leisure functions. ② It is also developing into a form of V2X Connectivity which strengthens communication integration.





Set Solutions & MLCC Requirements



1) Display Expansion
High-resolution multi-display
- 8K resolution, up to 8 monitors

2) Communication Integration
Network connectivity & vehicle operation information
- V2X, emergency Call, Wi-Fi, BT



⇓





　∙ Management of multiple displays

　∙ Fast processing of large volumes of graphic data
　∙ Driver status monitoring and voice recognition
　　processing
　∙ Support for various communication methods
　→ MLCC characteristics become critical as processor
　　performance increases!

　　Miniaturization & High Reliability
　　- Compact, high-capacitance MLCCs
　　- Low ESL MLCCs



Samsung Electro-Mechanics proposes MLCCs suited for IVI applications.

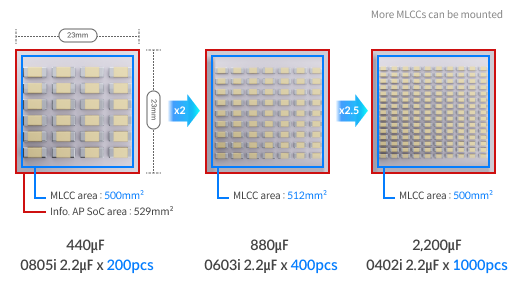

- Miniaturization: Enables the placement of more MLCCs within the same area

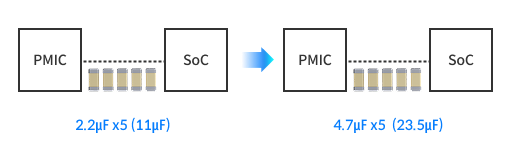

- High Capacitance: Delivers stable power even under rapid current changes
⇒ Ensuring the stable operation of SoCs!



Head-unit, IVI DCU (Domain Control Unit), Display Module MLCC 제안의 세부 적용에 대한 정보를 제공합니다.

Application Set

MLCC

Proposal

Detailed Application

Head-unit,



IVI DCU

(Domain

Control

Unit),



Display

Module

Miniaturization



High-Capacitance





X6S, X5R, C0G Series (AEC-Q200 Qualified, for Infotainment)



X6S Infotainment

      Mass Production
X6S 0201, 0402 inch Mass Production 정보를 제공합니다.

Size

(inch)

1nF

10nF

100nF

220nF

470nF

1㎌

2.2㎌

4.7㎌

10㎌

22㎌

47㎌

100㎌

020125V

25V

25V

10V

6.3V

10V












0402







25V

16V

25V

16V

6.3V











X5R Infotainment

      Mass Production
X5R 0201, 0402 inch Mass Production 정보를 제공합니다.

Size

(inch)

1nF

10nF

100nF

220nF

470nF

1㎌

2.2㎌

4.7㎌

10㎌

22㎌

47㎌

100㎌

020125V

25V

35V

10V

6.3V

16V












0402







25V

25V

25V

25V

10V











C0G Infotainment

      Mass Production
C0G 0201, 0402 inch Mass Production 정보를 제공합니다.

Size

(inch)

10pF

22pF

47pF

100pF

220pF

470pF

1nF

2.2nF

4.7nF

10nF

22nF

33nF

020150V

50V



100V















0402

100V

100V

100V

100V

50V

50V

50V











*The products are AEC-Q200 certified automotive-grade MLCCs designed specifically for IVI(In-Vehicle Infotainment) applications.


Low ESL (Reverse Type, 3-Terminal) MLCC
: SoCs with a highly improved performance lead to the increase of both currents and switching frequencies. Thus power-noise suppression is required.

High Performance SoC 모듈 제안의 세부 적용에 대한 정보를 제공합니다.

Application Set

MLCC

Proposal

Detailed Application

High

Performance

SoC

Low ESL

High-frequency noise generation

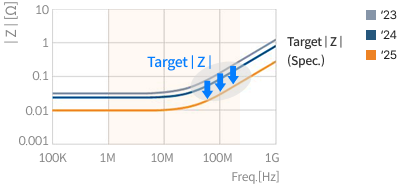

SoC target impedance



→ The usage of Low ESL (Reverse Type or 3T) products suppresses impedance within ESL areas!





Low ESL MLCC Lineup



Reverse (Low ESL)

      Mass Production        Under Development
Reverse (Low ESL)의 Mass Production 및 Under Development 정보를 제공합니다.

Type

Size

(inch/mm)

Max T

47nF

1㎌

2.2㎌

Reverse



0204/0510

0.22mm



2.5V (X7T)

2.5V (X7T)

0.30mm

 50V (X7R)





0.53mm



 4V (X7T)





3T (Low ESL)

      Mass Production        Under Development
3T (Low ESL)의 Mass Production 및 Under Development 정보를 제공합니다.

Type

Size

(inch/mm)

Max T

1㎌

4.3㎌

10㎌

3T



0402/1005

0.50mm

4V (X7T)

2.5V (X7T)


0603/1608

0.70mm

6.3/10/16V (X7T)





1.35mm





4V (X7T)



Samsung Electro-Mechanics’ Proposal for Compact, High-Capacitance, Low-ESL MLCCs
As described above, stable power delivery for high-performance automotive infotainment ICs requires MLCC miniaturization, capacitance enhancement, and increased reliability.
Samsung Electro-Mechanics introduces the IVI-optimized line-up of compact, high-capacitance, Low-ESL MLCCs. It leverages not only our proprietary fine-particle ceramic and electrode material technologies, but also ultra-precision stacking processes.

CL03C220JB31IN#,CL03A105MOR1IN#,CL03X105MPR1IN#,CL05C102JB51IN#,CL05A475MPQ1IN#,CL05X475MQQ1IN#, CLL5Z225MS21PN#, CLL5Z105MR41PN#, CL05Z105MR41PT# 제품의 Category, Size, Capacitance, TCC, Rated Voltage, Data Sheet, Sample의 정보를 제공합니다.

Category

Samsung

Size

(inch/mm)

Capacitance

TCC

Rated

Voltage

Data

Sheet

Sample

InfortainmentCL03C220JB31IN#

0201/0603

22pF

C0G

50Vdc

↓

Available

CL03A105MOR1IN#

0201/0603

1㎌

X5R

16Vdc

↓

Available

CL03X105MPR1IN#

0201/0603

1㎌

X6S

10Vdc

↓

Available

CL05C102JB51IN#

0402/1005

1nF

C0G

50Vdc

↓

Available

CL05A475MPQ1IN#

0402/1005

4.7㎌

X5R

10Vdc

↓

Available

CL05X475MQQ1IN#

0402/1005

4.7㎌

X6S

6.3Vdc

↓

Available

 Low ESL

(Reverse)

CLL5Z225MS21PN#

0204/0510

2.2㎌

X7T

2.5Vdc

↓

Available

CLL5Z105MR41PN#

0204/0510

1.0㎌

​X7T

4.0Vdc

↓

Available

Low ESL

(3T)

CL05Z105MR41PT#

0402/1005

1.0㎌

X7T

4.0Vdc

↓

Available

*Infotainment products are AEC-Q200 certified automotive-grade MLCCs designed specifically for IVI(In-Vehicle Infotainment) applications.



Please click here to submit further inquiries.
